Session 7 data flow part 2

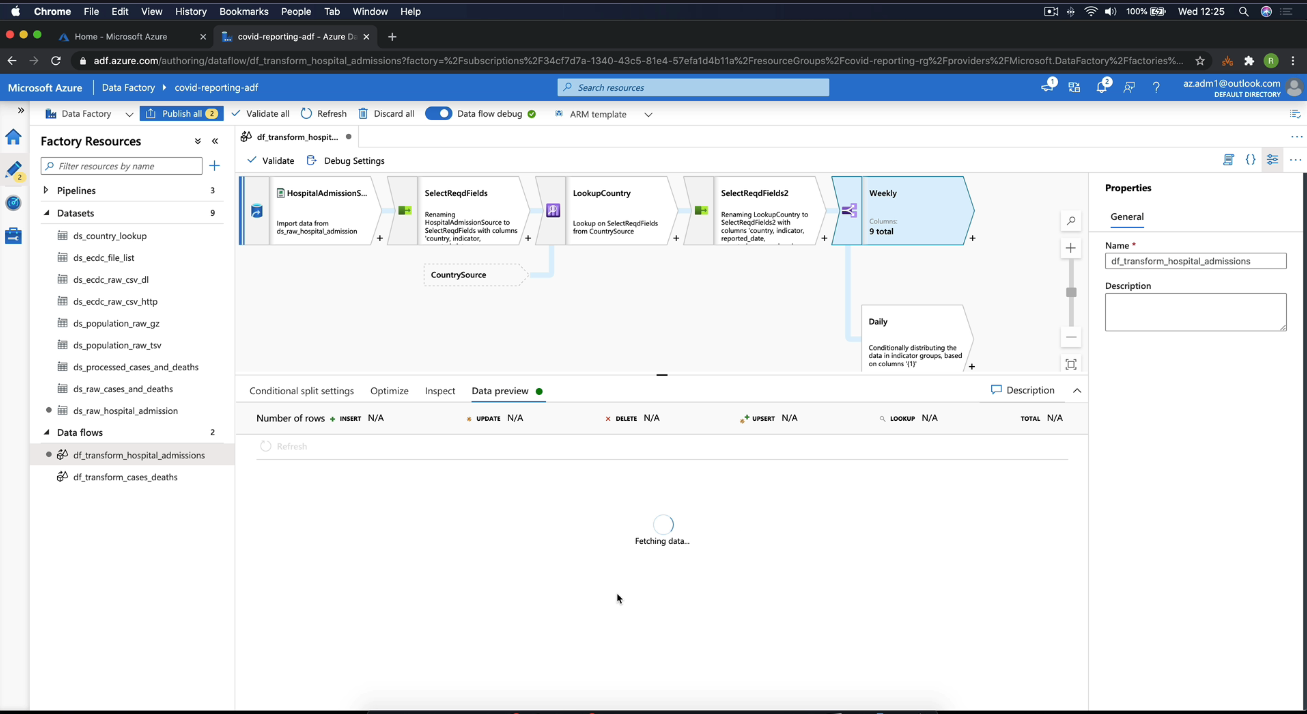

Data Flow Name: df_transform_hospital_admissions

Pipeline Steps:

1. Source (HospitalAdmissionSource):

   • Pulls data from ds_raw_hospital_admission.

2. SelectReqdFields:

   • Renames or selects specific fields: country, indicator, etc.

3. LookupCountry:

   • Performs a lookup using CountrySource (likely from ds_country_lookup) to enrich the data.

4. SelectReqdFields2:

   • Refines the result further with a new set of selected or renamed fields.

5. Split into Weekly and Daily:

   • A Conditional Split divides the data into two branches:

     • Weekly (9 columns total)

     • Daily (filtering on indicator column, likely conditional logic)

Right Panel:

• Shows general properties.

• Name: df_transform_hospital_admissions.

• Description: Empty.

Bottom Panel (Data preview):

• Currently loading: “Fetching data…”.

• Status: Data flow debug is enabled (green).

• Operation counts like INSERT, UPDATE, DELETE, etc., are N/A, meaning this is likely a preview run or the data hasn’t loaded yet.

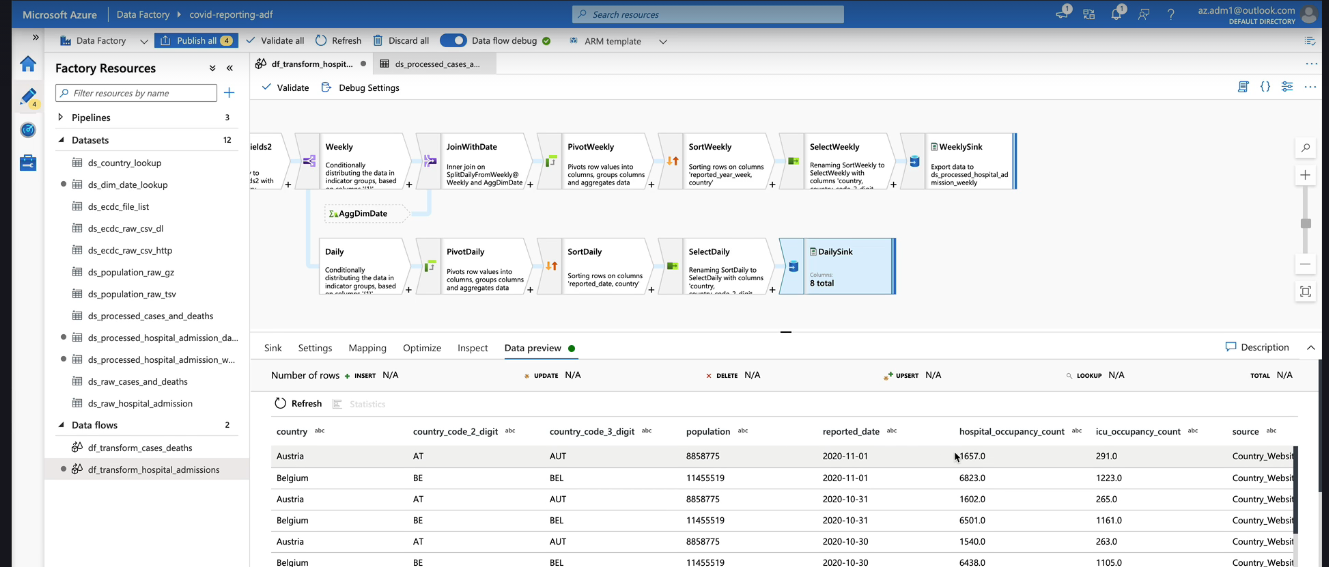

🔁 Complete Transformation Breakdown

---

🟦 1. Source (ds_raw_hospital_admission)

• What it does:

  • Reads raw hospital admission data from a source dataset (e.g., CSV, database).

  • Fields: country, reported_date, hospital_occupancy_count, icu_occupancy_count, etc.

---

🟨 2. fields2 (Conditional Split)

• What it does:

  • Splits incoming data into two branches: Weekly and Daily.

  • Based on a condition, likely using a flag or pattern in the data like:

    sql
    reported_granularity == 'weekly' => Weekly branch
    reported_granularity == 'daily' => Daily branch


• Why:

  • Enables separate transformation logic for weekly and daily reporting formats.

---

🟩 3. Weekly Branch

🔷 a. JoinWithDate (Join)

• What it does:

  • Joins raw data with a Date Dimension (likely AggDimDate).

  • Join keys: reported_date from source and date from the dimension.

• Why:

  • Enriches records with derived values like year_week, week_start_date, etc.

---

🔷 b. PivotWeekly (Pivot)

• What it does:

  • Pivots indicators (like hospital and ICU occupancy counts) into separate columns.

• Group by:

  • Likely year_week, country

• Values:

  • Transforms rows into a wider format with columns like:

    • hospital_occupancy_count

    • icu_occupancy_count

• Why:

  • Aggregates and reshapes data for weekly reporting.

---

🔷 c. SortWeekly (Sort)

• What it does:

  • Sorts the data by reported_year_week and country

• Why:

  • Ensures data is consistently ordered before writing to sink.

---

🔷 d. SelectWeekly (Select)

• What it does:

  • Keeps only required columns and renames as needed.

  • Final schema might include:

    • country, reported_year_week, hospital_occupancy_count, icu_occupancy_count

• Why:

  • Cleans and prepares data for export.

---

🔷 e. WeeklySink (Sink)

• What it does:

  • Writes the transformed weekly data to a target dataset.

  • Sink: ds_processed_hospital_admission_weekly

• Why:

  • Makes weekly data available for reporting/analytics.

---

🟩 4. Daily Branch

🔷 a. PivotDaily (Pivot)

• What it does:

  • Similar to PivotWeekly, but operates on daily granularity.

• Group by:

  • reported_date, country

• Why:

  • Converts long-format daily data into a wide format for daily analysis.

---

🔷 b. SortDaily (Sort)

• What it does:

  • Sorts by reported_date and country

• Why:

  • Ensures orderliness and data consistency in final output.

---

🔷 c. SelectDaily (Select)

• What it does:

  • Selects relevant fields like:

    • country, reported_date, hospital_occupancy_count, icu_occupancy_count, population, source

• Why:

  • Aligns with target schema and ensures only meaningful data is exported.

---

🔷 d. DailySink (Sink)

• What it does:

  • Writes the final daily data to ds_processed_hospital_admission_daily

• Why:

• Makes daily data available for downstream use (dashboards, exports).

Transformation	Type	Description
ds_raw_hospital_admission	Source	Loads raw hospital admission data
fields2	Conditional Split	Splits data into Daily and Weekly pipelines
JoinWithDate	Join	Adds weekly context by joining with date dimension
PivotWeekly	Pivot	Converts indicator rows into columns (weekly)
SortWeekly	Sort	Sorts by week and country
SelectWeekly	Select	Keeps/renames columns for export
WeeklySink	Sink	Outputs to weekly processed dataset
PivotDaily	Pivot	Converts indicator rows into columns (daily)
SortDaily	Sort	Sorts by date and country
SelectDaily	Select	Keeps/renames columns for export
DailySink	Sink	Outputs to daily processed dataset
